Electronicase Products
Multifunctions enclosure
Multifunctions enclosure EC10-2xx
ElectroniCase - Custom Designed Enclosure - LTP18050094
ElectroniCase - Custom Designed Enclosure - LTP18050094
Multifunctions enclosure EC10-4xx
Data sheet
MODELS
Multifunctions enclosure EC10-2xx
DESIGN CONCEPT

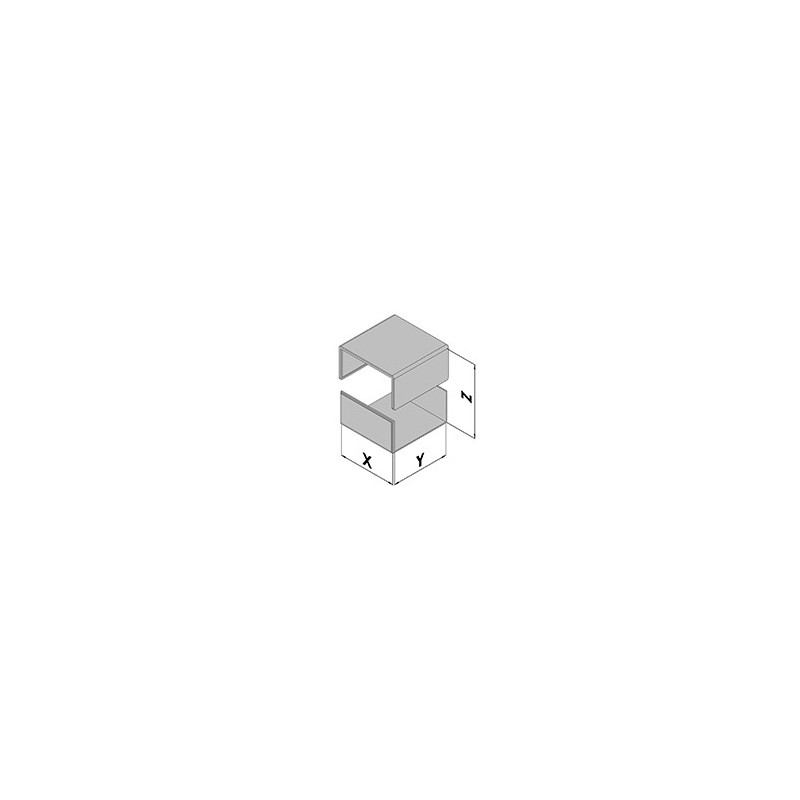

Custom plastic enclosures consisting of Two U-shaped pieces, snap together with tongue and groove.
CAD MODELS
Please select
PLY
OBJ
STL
STEP
SOLIDWORKS
Download
Download
SIGN IN
help
Your Project :
For example: Wall Mount Enclosure Project X
help
Project Name :
*
For example: Wall Mount Enclosure Project X
help
Enter your dimension (Internal Dimensions in mm)
*
Attention: Internal dimensions
X
Y
Z
help
Material
*
ABS: Standard plastic raw material made of ABS / PS-UL: plastic raw material made of flame retardant polystyrene, classified UL94V0
ABS Black 3mm
ABS White 3mm
ABS Black 4mm
ABS White 4mm
ABS UL_Flame retardant Black 3mm
ABS UL_Flame retardant White 3mm
ABS UL_Flame retardant Black 4mm
ABS UL_Flame retardant White 4mm
help
Insert file
Any complementary information, that can help us to design your enclosure (i.e. sketches, 2D or 3D drawings, R&D product brief, images etc.)
- File 1 :
- File 2 :
help
Personnalisation :
The information provided in this form, will allow to generate an instant quote. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure or front panel.
help
Milling :
Contrary to standard machined enclosures, the EC enclosure includes all cut-outs and necessary millings based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.
help
Nb of Drilling : (< = 5mm x 5mm)
The drilling is a maching process to create a hole in a plastic piece. This hole can be used for a screw, a plug, a socket, a cable passage etc.
help
Nb of cutouts : (Per connectors) (> 5mm x 5mm) and < 40mm x 40mm)
A cutout is created by a machining process, minimum size 5mm x 5mm and maximum size 40mm x 40mm, allowing the passage of a connector, button, divers cabeling or other usage.
help
Windows / openings 1 : (In mm) (> = 40mm x 40mm)
A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
x
y
help
[With Acrylic window in 3mm]
A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
No
Yes
help
Windows / openings 2 : (In mm) (> = 40mm x 40mm)
A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
x
y
help
[With Acrylic window in 3mm]
A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
No
Yes
help
Windows / openings 3 : (In mm) (> = 40mm x 40mm)
A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
x
y
help
[With Acrylic window in 3mm]
A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
No
Yes
help
Nb of Vents : (Based on 10 slots of 50mm ea.)
A vent is a set of 10 grooves of 50mm who serves to evacuate the heat generated by the internal components. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure or front panel.
help
Nb of marking : (Based on 1 engraved part of around 20mm)
For exemple your logo or technical instructions directly milled into the raw material.
help
Recess 1 : (In mm) [For membrane keypad]
A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.
x
y
help
Recess 2 : (In mm) [For membrane keypad]
A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.
x
y
help
Recess 3 : (In mm) [For membrane keypad]
A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.
x
y
help
Nb of loose parts :
Loose parts are non glued mounting features for the internal equipment of the enclosure (i.e. seperation, blockage etc.)
help
Nb of Circuit board slot :
Circuit board slots are grooves milled opposite on the internal sides into the plastic. You can slide your PCB in those grooves. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
help
Length of circuit board slot :
Please indicate the length of the PCB groove / slot.
help
Mounting Features :
Contrary to standard machined enclosures, the EC enclosure includes all necessary mounting features based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.
help
Nb inserts :
An insert is a part made out of brass with a thread (M2,5 - M3), implanted in a standoff or directly in the raw material, which then allows you to fix electronic components. Its use is preconised in the case of frequent mounting and dissassembling of a component. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
help
Nb Standoffs :
A standoff is a plastic spacer tube of different dimensions, used to fix your electronic components. Its use is recommanded in the case of frequent mounting and dissassembling of a component. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
help
Nb rubber feet :
To stabilize or lift your device, you can add rubber feet. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
help
Nb tabs/rails/spacers :
Those are glued parts inside your enclosure, to either hold electronic components, which cannot be mounted on standoffs or to devide, strengthen or stabilize your enclosure.
help
Finish :
Contrary to standard machined enclosures, the EC enclosure includes all necessary finishings based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.
help
CEM Protection :
The EMI protection (Electromagnetic Interference) or conductive shield paint, is a paint, based on nickel or copper. Its application creates a Faraday screen, to protect from electric or alternatively electromagnetic externities, and vice versa stops the device from polluting its environement. It also serves to the electric continuity.
No
Yes
help
Paint :
The available raw materials are either black or white, but we do offer all solutions for all finishings and colour shades (Paint: all RAL "or corresponding Panton" prepared in our work shop. Finishing: satiné).
No
1 Color
2 Colors
help
Nb Silkscreen colors/passes : (1 pass per color and faces)
Any marking is done in-house with our digital printers, allowing four-colour print. Marking of an enclosure has mainly 2 goals. Functional: Identifiation, Norms or Instructions. Aestetic: Corporate Identify of the device, embellishing or represensation of the use.
help
High Protection varnish :
Clear strong protection varnish: For additional protection, we can apply high protection varnis (Finishing: satin)
No
Yes
help
Others operation
In this section you can submit any important, additional information, not covered in the form and/or key points concerning your project (i.e. specific application or environemental conditions)
help
Forecast quantities
Having maximum information regarding your project, allows us to provide adapted and quality advice.
