Designing a Custom Plastic Enclosure with the Best Material

Finding the Right Balance Between Cost, Durability, and Aesthetics

When designing a custom plastic enclosure, material selection is a critical step. By clearly defining your project's requirements, you can choose the plastic that offers the best balance of cost, durability, and aesthetics.

LTP can help guide you through this process.

I submit my information now!

Defining the Requirements for a Custom Plastic Enclosure Project

Before selecting a material, it is essential to analyze the product’s requirements carefully:

Operating Environment

Will the enclosure be exposed to extreme temperatures, UV radiation, humidity, or chemical substances?

Material Properties

Should the material be standard or flame-retardant? Does it need to comply with IP standards or achieve a UL94 V-0 fire rating?

Mechanical Requirements

Must the enclosure withstand impacts, pressure, or vibrations? It is important to evaluate the overall strength of the enclosure as well as the resistance of specific areas?

Additional Constraints

Does the enclosure need to resist chemicals? Will it be exposed to high or low temperatures?

Aesthetics and Surface Finish

Is a glossy, matte, or transparent surface required? What thickness is needed? What color should be used? Should the finish be smooth, textured, or feature a grain pattern?

Compliance with Standards

Some industries are subject to strict regulations, particularly regarding PFAS and recyclability requirements.

Choosing the Right Material

LTP processes a wide range of plastic materials, including PMMA, PVC, PS, ABS, and PC, which are available in sheet form, either rigid or flexible, as well as various composite materials.

Each type of plastic has its own unique properties. Below is an overview of some commonly used materials:

ABS (Acrylonitrile Butadiene Styrene): An Excellent Balance of Impact Resistance, Cost, and Ease of Manufacturing

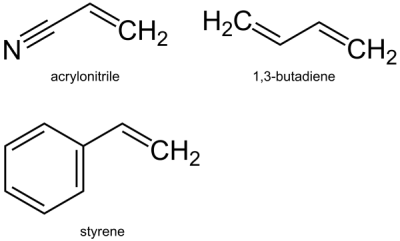

Acrylonitrile Butadiene Styrene (ABS) is an amorphous thermoplastic polymer produced through the polymerization of acrylonitrile and styrene in the presence of polybutadiene. It is widely used because it offers an excellent balance of impact resistance, affordability, and ease of processing, making it a popular choice for custom plastic enclosures and industrial applications:

ABS (Acrylonitrile Butadiene Styrene): An Excellent Balance of Impact Resistance, Cost, and Ease of Manufacturing

The most important properties of ABS include:

  • An attractive appearance, available in smooth, satin, or textured finishes.

  • Various levels of stiffness and impact resistance depending on the grade selected.

  • The possibility of UV stabilization through the addition of specific additives.

  • Good chemical resistance.

  • Availability of UL94 V-0 flame-retardant grades with self-extinguishing properties.

  • A recyclable material.

PC (Polycarbonate): Excellent Mechanical and Thermal Performance, but More Expensive

Polycarbonate (PC) is primarily manufactured through a polycondensation reaction involving Bisphenol A (BPA) and phosgene (COCl₂):

PC (Polycarbonate): Excellent Mechanical and Thermal Performance, but More Expensive

Polycarbonate is known for its exceptional mechanical strength, impact resistance, and thermal performance, making it a preferred material for demanding applications where durability and reliability are critical. However, these advantages generally come at a higher cost compared to materials such as ABS.

The most important properties of polycarbonate (PC) include:

  • An attractive surface finish, available in glossy, smooth, or textured forms.

  • Excellent electrical insulation properties.

  • The possibility of UV stabilization through the addition of specific additives.

  • Good chemical resistance and the availability of flame-retardant grades.

  • A recyclable material.

PMMA (Polymethyl Methacrylate): Ideal for Transparent and Aesthetic Enclosures

Polymethyl Methacrylate (PMMA) is a highly transparent thermoplastic polymer produced through the polymerization of the methyl methacrylate monomer:

PMMA (Polymethyl Methacrylate): Ideal for Transparent and Aesthetic Enclosures

The most important properties of PMMA (Polymethyl Methacrylate) include:

  • A glossy and smooth surface finish.

  • Good mechanical properties, although it is more brittle than ABS.

  • Excellent light transmission and optical clarity.

  • The possibility of UV stabilization through the addition of specific additives.

  • A recyclable material.

PVC (Polyvinyl Chloride): Resistant to Chemicals and Moisture, Cost-Effective but Less Rigid

Polyvinyl Chloride (PVC) is a synthetic thermoplastic material produced through the polymerization of vinyl chloride monomer (VCM), also known as chloroethene:

PVC (Polyvinyl Chloride): Resistant to Chemicals and Moisture, Cost-Effective but Less Rigid

The most important properties of PVC (Polyvinyl Chloride) include:

  • An attractive finish available in glossy, smooth, or textured forms.

  • Good impact resistance.

  • Excellent chemical resistance.

  • The possibility of UV stabilization through the addition of specific additives.

  • A recyclable material.

PS (Polystyrene): A Cost-Effective Material with Good Processability

Polystyrene (PS) is a highly transparent thermoplastic polymer produced through the polymerization of the styrene monomer:

PS (Polystyrene): A Cost-Effective Material with Good Processability

Polystyrene is generally divided into two main categories:

  • GPPS (General-Purpose Polystyrene), also known as transparent polystyrene, offers excellent clarity and is fully transparent, but it is relatively brittle.

  • HIPS (High-Impact Polystyrene) contains butadiene rubber as an impact modifier, providing improved impact resistance at the expense of some transparency.

The most important properties of polystyrene (PS) include:

  • A variety of surface finishes, including matte, satin, or glossy, as well as smooth or textured appearances.

  • The possibility of UV stabilization through the addition of specific additives.

  • Availability of flame-retardant grades.

  • A recyclable material.

Optimizing Manufacturing and Costs with no Mold Production Solutions

The choice of plastic material has a direct impact on manufacturing costs. To avoid the significant investment required for tooling, LTP also offers no mold manufacturing solutions, providing greater flexibility while reducing production costs, particularly for prototypes and small production runs.

These manufacturing methods deliver high precision, are well suited to low-volume production, and offer maximum flexibility while minimizing setup costs.

By selecting a material that matches the actual requirements of the application and leveraging no mold manufacturing processes, it is possible to control costs effectively while ensuring the quality, performance, and durability of the final product.

Personalized Support to Ensure Project Success

LTP, a company specializing in the design of custom plastic enclosures, supports you at every stage of your project: requirements analysis, prototyping, strength testing, and full-scale production. This expertise helps optimize product performance while controlling costs and ensuring compliance with applicable standards and regulations.

Support Tailored to Every Industry

Whether for electronics, medical devices, automotive manufacturing, aerospace, or home automation, each industry has specific requirements in terms of design, materials, and performance.

LTP provides solutions tailored to the constraints of each sector and supports its customers throughout the product development process, from the initial concept to production launch. This customized approach helps ensure regulatory compliance, improve product performance, and contribute to the commercial success of innovative products.

Thanks to a well-defined design approach and careful material selection, it is possible to develop a custom plastic enclosure that combines quality, durability, and cost-effectiveness, without the need to invest in expensive molds.

Customer Success Story

Marc, the founder of an IoT startup, chose LTP for the design and production of custom plastic enclosures.

« We had an innovative concept, but we didn’t know how to turn our prototype into an industrial product. The team guided us every step of the way: material selection, strength testing, and compliance with industry standards…
Thanks to their expertise, we were able to launch our product with confidence. Today, our product is sold across the European market, and we have been able to expand our product range! »

Through this personalized support, LTP helps its customers develop successful products and achieve their business objectives by delivering custom solutions tailored to their specific needs.
